BIG ANNOUNCEMENT: 5 Year Full Warranty on Our All New Fiber Laser Machines – Parts, Labour, Source, Head & UK Support!

Fabertec FL4
1530, 2030, 2040

Introducing the FABERTEC FL4 Fiber Laser, the ultimate solution for laser cutting subcontractors who demand unparalleled performance and reliability around the clock. With the FL4, you can process laser-cut parts non-stop, 24 hours a day, 7 days a week, ensuring maximum productivity and efficiency for your business.

Comparable to models from well-known brands that typically cost between £300k-800k, the FL4 Fiber Laser offers exceptional value starting from just £59k + VAT for the 2kW laser source configuration. Despite its affordable price point, the FL4 does not compromise on quality or capabilities.

Designed to operate as economically as possible, the FL4 boasts a robust construction and advanced features that enable it to handle a wide range of applications with precision and speed. From intricate designs to heavy-duty materials, the FL4 fiber laser delivers consistent and reliable results, allowing you to maximize the value of your investment.

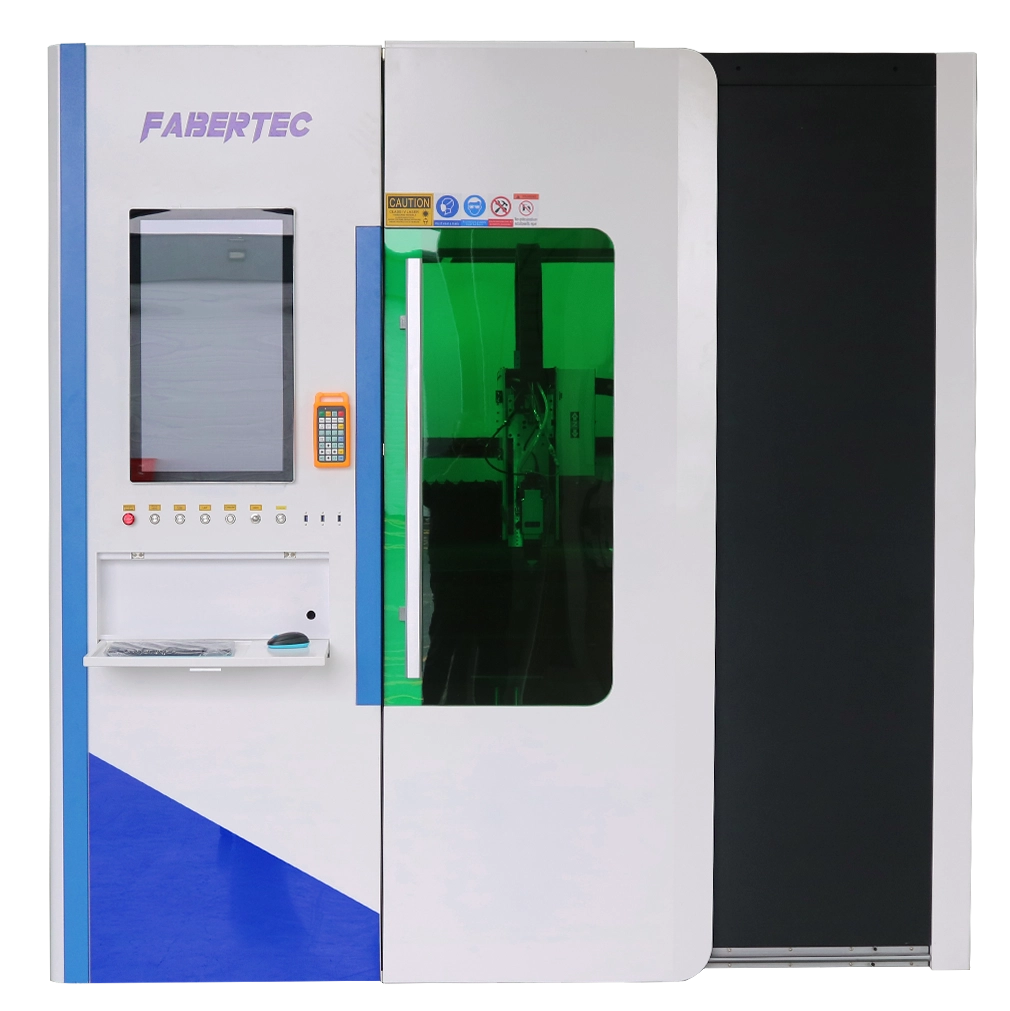

fabertec fiber laser 6kW sheet cutter
fabertec fiber laser fl4

Maximizing Uptime, Efficiency, and Maintenance-Free Operations

FL4 maximizes uptime with an integrated shuttle table system, which allows one table to be loaded/unloaded while cutting on the other table. Table changeover is completed in just 45 seconds. Sheet edge recognition will adjust all your vectors to unaligned metal sheet on slats. Automatic height adjustment, laser head collision prevention and frog leap, will keep you cutting all day long without any stopovers. Micro Joint will allow you to cut tiny pieces, leaving a tab between elements to remove larger sections, instead of fishing out for small parts in floor drawer.

Fly cutting, circle centering, frame border and other are adding to efficiency in your operations   Our fibre laser cutting machines are built to require little to no maintenance, and our laser sources may operate for up to 100,000 hours without calibration or expensive replacements. Only inexpensive spares, like lenses, lens covers, and nozzles, are needed. For businesses that need to create thousands of pieces in just a few days, fibre lasers for metal cutting are basically the only option.

The FL4 with a standard minimum table size of 1500 x 3000mm and a dual-table conveyor system, FL4 simplifies operations. Cut on one table while the second retracts, enabling easy sheet loading via forklift, magnetic crane, or clamp crane.

LASER SOURCE - THE HEART OF FIBER LASER CUTTING MACHINES

In all fiber laser cutting machines, the laser source is one of the most important parts that allows for smooth and accurate cuts. At FABERTEC we offer reliable and affordable MAX/RAYCUS laser sources.

Before 2024, we considered IPG as the go-to laser source, but after gaining in-depth training in laser source repairs and opening the first UK repair center,        FABERTEC PHOTONICS, we’ve come to value MAX/RAYCUS brands with much more respect.

MAX/RAYCUS sources offer the same cutting quality, speed, and accuracy as higher-priced alternatives but at around 30–40% of the cost. What’s most important in our opinion is the fact that these affordable brands can be repaired with ease, spare parts are readily available, and they’re designed to be more open for local service centres. Of course, the final choice depends on your budget and preferences. At FABERTEC, we supply and install MAX or RAYCUS sources from our UK branch with full support.

⚠️ When cutting reflective materials like brass or copper, you must ensure the material is properly pierced to prevent bounce-back light from returning to the laser source. Damage caused by such reflections may not be covered by the manufacturer.

fabertec max-raycus photonics laser source

Fabertec Fiber Laser FL4 Build Quality

Parts or solutions we offer with every FL4 models

FSCUT CONTROLLER

The best “budget” controller in the world FSCUT 4000e/8000e used by tens of thousands of machines around the world. Same brand laser head and software to work in perfect unison.

BOCI 421/642 LASER HEAD

Same brand controller and software. Multiple safety sensors like temperature, pressure, and lens cleanliness to prevent damage and inform the operator well ahead of any problems.

DOUBLE SHUTTLE TABLE

Cut continuously without breaks to clean skeletons and parts. 45 seconds to exchange table, measure sheet angle, and cut the next sheet. Cut 100 sheets per day with ease.

FULL SAFETY BARRIERS

The rear table is protected by safety barriers. Protect your operators when exchanging tables.

CCTV CAMERAS

CCTV cameras inside the main body and rear table. The operator has a full view of what is happening in the machine and rear table.

DUST EXTRACTION

Fully sealed main body with extraction points to keep the machine and workshop clean and safe for employees. Additionally, below the table zones operate extraction points – focusing extraction where the laser head is cutting.

Smallest footprint in the industry. We know that space in UK workshops is worth a fortune.

LASER-RATED VISIBILITY SCREENS

Full visibility into the main body through laser-rated protection screens. They are designed to protect against the same wavelength of the laser as the machine is generating.

MAX LASER SOURCE

The most advanced laser source, very close in quality to IPG laser sources but at a fifth of the price. Fabricators no longer need to spend a fortune to accurately cut metal parts.

CYPCUT

Used by tens of thousands of operators on lasers around the whole world. Very easy to learn and cut in literally 30 minutes. Has all of the options to create vectors, leads, arrays, fly-cutting, sheet angle, nesting, micro joints, circle centering, countersink for screw heads, and many more.

Affordable prices to allow you to speed up your workshop processes.

max laser   6kw  12kw 20kw   30kw
 FABERTEC FL4 1530 £92,000 £150,000 £185,000 £220,000
 FABERTEC FL4 2030 £122,000 £180,000 £215,000 £250,000
FABERTEC FL4 2040 £137,000 £195,000 £230,000 £265,000



Metal Dust Extractor Filtered 2M £6,000
Metal Dust Extractor Filtered 4L £9,000
Metal Dust Extractor Filtered 6L £12,000
Metal Dust Extractor Filtered 8L £14,000
Spare Filter £230
Spare Valve £150

Lease Purchase

MODEL  TOTAL PRICE MONTHLY    WEEKLY  DAILY
 FL4 1530 6kW MAX   £92,000 + VAT  £2,071 £478  £68

NOTE: Figures shown for a 5-year lease term; VAT payable upfront.

VAT - Not included in the price above.

Dust Extractors Included - 4L for 6kW | 6L for 12kW | 8L for 20kW & 30kW

fiber laser full spare parts
fiber laser head with bed

Have you ever wondered what makes the Fabertec fully enclosed double-table fiber laser cutter so affordable? Here's why:

Why Fabertec Fiber Lasers are so affordable?

Delivery

We provide free of charge delivery of the FL4 machine. On the Client side you will need forklift 5t-7t with 2000-2400mm forks (dependable on model) to unload and position in workshop.

After delivery, our engineers will visit the workshop to complete installation, commissioning, and training. This visit will be scheduled separately, based on the client’s availability and the engineer’s schedule.

Don't worry if on first day you may not be very fluent with all operations (most operators cut on their machines in about 1h). We will provide you with our WhatsApp number where engineers will help if stuck or doubt.

Warranty

  • 5 Year Full Warranty (Parts, Labour, Source, Head & UK Support) included - for all new Fiber Laser Machines supplied from 1st June 2025 onwards.
  • Obligatory maintenance visits every 12 months to keep your machine in top condition £1,500 + travel time (£85/h) + Fuel surcharge (£0.90/m)
  • Machines supplied earlier continue under their original terms and conditions.

What is Included in the Package?

Fully assembled machine ready for work from our UK based workshops, all consumables like nozzles, lenses. Laser source and matching chillers. Demineralised water to fill your chiller on installation day. Lifetime software to draw and operate machine. Delivery on hiab, Installation and training. WhatsApp support to help operators with any issues.



LASER HEAD - THE "FOCUS" OF THE MACHINE

Dust Protection by Design

Multiple protective lenses are easily accessible to replace. Focusing and Collimating lenses are accessible without the need to disassemble the laser head.

Smart and Safe Processing

Monitor the gas pressure of first 2 lower protective lenses to provide you with early warning in case of drop in pressure.

Collision Screws

Fiber laser head provides an extra layer of protection against collisions and environmental hazards.

Protective Lenses Monitoring System

Upgraded controller algorithm integrated with sensors to prevent in most cases damage to lenses caused by pollution.

FL4 Controller Features

Envelope Check of fiber laser controller

Envelope Check

Micro Joint of fiber laser

Micro Joint

One-Path FlyCut of fiber laser

One-Path FlyCut

Up to 6KW

  • Micro Joint – If you are cutting hundreds of small elements and not fancy digging them out from drawers – leaving a skeleton sheet with tiny tabs to remove, most of them, in one go.
  • Scan to Import – Just scan your drawings to create vectors ready for cutting.
From 6kW to 15kW
  • Fast Piercing – Very effective for thinner sheets.
  • Deslag – Improve quality on piercing by burning out slag. Especially important for thick plates.
  • 5 Stage Piercing – Even more stages for very thick plates at the end of your laser source capability.
  • Corner Technique – Improve quality on the sharp corners
  • Quick Cutoff – Quickly cut off by pressing one button sheet edge on X or Y axis.

Fabertec FL4 Dimensions

fabertec fl4 1530 fiber laser dimension
fabertec fl4 2030 fiber laser dimension
FABERTEC FIBER LASER FL4 2040

Fiber Laser Cutting Specification

Responsive Notification Boxes
Will Cut
Will Cut with Altered Settings/Dross May Be Present
Will Not Cut



Material MAX 0.5mm 1mm 1.5mm 2mm 3mm 4mm 5mm 6mm 8mm
MILD STEEL 1kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 1kW ✔ ✔ ✔ ✔ ✔ ✔ ✘
STAINLESS STEEL 1kW ✔ ✔ ✔ ✔ ✔ ✘
BRASS 1kW ✔ ✔ ✔ ✔ ✘
COPPER 1kW ✔ ✔ ✔ ✘
Material MAX 0.5mm 1mm 1.5mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm
MILD STEEL 2kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 2kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
STAINLESS STEEL 2kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
BRASS 2kW ✔ ✔ ✔ ✔ ✘
COPPER 2kW ✔ ✔ ✔ ✘
Material MAX 0.5mm 1mm 1.5mm 2mm 3mm 4mm 5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm
MILD STEEL 3kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 3kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
STAINLESS STEEL 3kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
BRASS 3kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
COPPER 3kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
Material MAX 0.5mm - 5mm 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 26mm
MILD STEEL 4kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 4kW ✔ ✔ ✔ ✔ ✔ ✔ ✘
STAINLESS STEEL 4kW ✔ ✔ ✔ ✔ ✔ ✘
BRASS 4kW ✔ ✔ ✔ ✘
COPPER 4kW ✔ ✔ ✘
Material MAX 0.5mm - 6mm 8mm 10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 26mm 28mm 30mm
MILD STEEL 6kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 6kW ✔ ✔ ✔ ✔ ✔ ✔ ✔
STAINLESS STEEL 6kW ✔ ✔ ✔ ✔ ✔ ✘
BRASS 6kW ✔ ✔ ✔ ✔
COPPER 6kW ✔ ✔ ✘
Material MAX 0.5mm - 10mm 12mm 14mm 16mm 18mm 20mm 22mm 24mm 26mm 28mm 30mm 32mm 34mm 36mm
MILD STEEL 8kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 8kW ✔ ✔ ✔ ✔ ✔ ✔ ✘
STAINLESS STEEL 8kW ✔ ✔ ✔ ✔ ✔ ✘
BRASS 8kW ✔ ✔ ✔ ✘
COPPER 8kW ✔ ✔ ✘
Material MAX 0.5mm - 14mm 16mm 18mm 20mm 22mm 24mm 26mm 28mm 30mm 38mm 40mm 42mm
MILD STEEL 12kW ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✘
ALUMINIUM 12kW ✔ ✔ ✔ ✔ ✔ ✘ ✘
STAINLESS STEEL 12kW ✔ ✔ ✔ ✔ ✔ ✘
BRASS 12kW ✔ ✔ ✔ ✘
COPPER 12kW ✔ ✔ ✘

Please note: This document provides a general overview of the cutting parameters achievable with the MAX Laser Source. Areas marked in red represent "peak" performance for specific thicknesses. If your primary cutting requirements fall within the red range, it is advisable to consider upgrading your kilowattage to achieve improved performance and feed rates.

See our video demonstrations below:

Fabertec Fiber Laser FL4 12kW Precision Cutting & Engraving 5mm Stainless Steel

Cutting Samples

CUTTING-SAMPLES-OF-FIBER-LASER
FIBER LASER CUTTING SAMPLES
Fiber Laser Cutting Samples

Some of the important features of the Fabertec FL4 Fiber Laser

The entire machine is built as a fully enclosed system, which means no laser light or fumes escape during operation. This design keeps the working environment safe for operators and others nearby. It’s compliant with Class 4 laser safety regulations, offering peace of mind for workshops that prioritise operator safety and UKCA standards.
This machine uses the trusted BOCI brand for its laser head, controller, and software, all coming from the same manufacturer. That means better compatibility, fewer errors, and a smoother workflow. Operators don’t need to deal with mismatched components from different suppliers, making setup and maintenance easier in the long run.
The machine comes fitted with a MAX Photonics laser source - a solid choice for those who want reliable performance without the premium price tag. It offers cutting quality comparable to IPG but costs nearly five times less, making it ideal for businesses looking to keep upfront costs low without compromising on output.
The machine comes with two shuttle tables, allowing non-stop production. While one sheet is being cut, the operator can clean and prepare the next sheet on the rear table. Table exchange takes just 40 seconds, meaning minimal downtime between jobs and a steady, continuous workflow without unnecessary waiting.
The machine includes a fully sealed dust extractor with built-in filtration, helping keep the cutting area clean and free from debris. It not only protects the machine’s components for longer life but also ensures a healthier working environment for operators by keeping airborne particles under control.
The machine can cut using air, oxygen, or nitrogen, giving you full flexibility based on the material and job requirements. With three separate gas inlets controlled directly from the software, there’s no need to manually adjust valves. Switching gases takes just seconds, keeping your workflow fast and efficient.
The machine is designed with multiple safety features like software limits, temperature monitoring, gas pressure sensors, and capacity controls. These systems work together to catch issues early and prevent serious damage to the laser source or other critical parts. It’s all about avoiding costly repairs by stopping problems before they start.
The machine’s software is designed to be straightforward and user-friendly. With just one hour of training, operators can start running jobs confidently. Another hour focused on maintenance and troubleshooting is enough to handle day-to-day tasks and even cut complex projects, making it ideal for busy workshops with tight schedules.
Fully enclosed FL3 model keeps all laser light and metal dust contained inside the machine body. Green screens specially designed for 1064um wave length protects operators.
Fabertec is the only company across the UK and Ireland equipped to repair high-power laser sources used for both sheet and tube cutting. This means faster turnaround, no need to ship parts overseas, and support you can actually reach. It’s a big plus when every minute of downtime affects your bottom line.
All critical spare parts and consumables are stocked in our UK warehouse, ready for quick dispatch. If anything goes wrong or you need regular wear-and-tear items, we can get them to you by the next working day. This keeps your downtime minimal and your production running smoothly.
Our team of UK-based engineers is just a message away. Whether it’s a quick question or a technical issue, you can reach us directly through WhatsApp for fast, real-time support. No need to wait days for help, we’re here to keep your machine and operators running without stress.

Are you looking for a fully enclosed single table Fiber Laser machine?

Please consider Fabertec FL3 Fiber Laser Cutter



Technical specification

  • Max/Raycus or German IPG laser source – advertised manufacturers fiber laser lifespan up to 100,000 hours – the equivalent of 10h daily cutting for 27 years!
  • Structure fully welded and heat destressed
  • Full servo motors Fuji or Yaskawa installed
  • Speeds up to 80 meters per minute
  • Aluminum reinforced gantry for higher speeds
  • Hiwin runners with automatic lubrication
  • Digital touch height control – laser head follows sheet height on the table (DTHC)
  • Automatic height adjustment – laser heads follow sheet height on the table
  • Automatic calibration – the controller automatically checks laser settings
  • Large monitor with Cypcut software
  • Handheld wireless control panel
  • Draw, adjust, import DXF/PDF, create a lead in/out – all straight from the machine
  • Two separate inlets for oxygen/nitrogen controlled by electric valves
  • Automatic focus of laser head from software
  • Supplied with array of nozzles, protective lenses, spares
  • Runners and linear gear protection against ​laser and sparks possible damage
  • Drawers underneath the table for offcuts/parts
  • Two automatic tables installed
  • Supplied with powerful chiller also with the heating option – in case workshop temperature goes below 0 to prevent damage from water freezing
  • Optional dust extractors with fire protection to keep the warehouse free from metal dust
  • Single phase (230v) up to 2kw laser source
