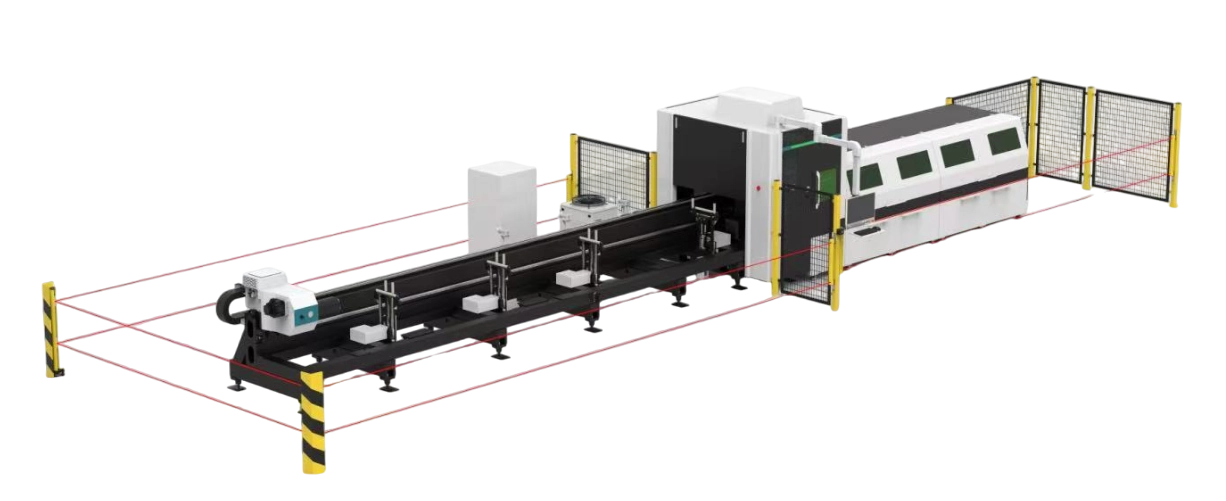

The FABERTEC FLT2 Fiber Tube Laser Cutter is built for businesses that demand precision, reliability, and future-ready capability in their tube processing operations. Designed to cut mild steel tubes with wall thicknesses up to 15mm, this machine is perfectly suited for a wide range of fabrication needs, from lightweight structural frames to thicker industrial pipework. It supports tube lengths between 6 and 7.2 meters, handling round pipes as well as square profiles such as 25x25mm and 40x40mm with ease. Outfitted with high-precision chucks, the FLT2 ensures consistent, accurate cuts every time, while the robust 220mm diameter capacity means you're ready to take on larger, more demanding jobs without needing to upgrade. The machine features a fully enclosed structure and light barrier system, meeting strict Class 4 Laser Safety standards to protect operators and maintain a clean, controlled working environment.
Though it comes as standard without auto-loading or unloading, it includes the option to add a loading system in the future, giving you flexibility to scale production when the time is right. Whether you're cutting short production runs or high-volume batches, the FLT2 delivers clean, high-speed results with minimal waste and maximum precision.
Technical specification
- Powerful MAX/RAYCUS Fiber Laser Source – ideal for cutting up to 15mm mild steel tube walls
- Supports pipe/tube length up to 7.2 meters
- Suitable for round pipes (Ø38mm) and box sections (e.g., 25x25mm, 40x40mm)
- Max cutting diameter up to 220mm – future-ready for larger profiles
- High-precision chucks for accurate tube clamping and rotation
- Fully enclosed design with light barriers – Class 4 laser safety compliant
- Outgoing material length from chuck: approx. 1500mm
- Ideal for fabrication, steelwork, furniture, and general tube processing
- Heavy-duty welded steel structure for maximum stability
- Option to add automatic loading system for improved efficiency
- Compatible with DXF and PDF file input
- Auto-focus laser head via software for consistent cutting results
- Built-in cooling system with temperature regulation
- Single control unit with user-friendly interface and large display
- Two automatic tables installed
- Optional extraction systems can be integrated for cleaner workshop environments
Affordable prices to allow you to speed up your workshop processes.
max laser | 2kw | 3kw | 4kw | 6kw |
---|---|---|---|---|
FABERTEC FLT2 | - | £68,000 | - | - |
Metal Dust Extractor Filtered 2M | £6,000 |
Metal Dust Extractor Filtered 4L | £9,000 |
Metal Dust Extractor Filtered 6L | £12,000 |
Metal Dust Extractor Filtered 8L | £14,000 |
Spare Filter | £230 |
Spare Valve | £150 |
Lease Purchase
MODEL | TOTAL PRICE | MONTHLY | WEEKLY | DAILY |
---|---|---|---|---|
FL4 1530 3kW MAX | £68,000 + VAT | £1,531 | £353 | £50 |
NOTE: Figures shown for a 5-year lease term; VAT payable upfront.
Dust Extractors Included
VAT - Not included in the price above.
Delivery
We provide free-of-charge delivery of the FLT2 machine. On the Client side, you will need a forklift to unload and position in the workshop.
After delivery, our engineers will visit the workshop to complete installation, commissioning, and training. This visit will be scheduled separately, based on the client’s availability and the engineer’s schedule.
Don't worry if on first day you may not be very fluent with all operations (most operators cut on their machines in about 1h). We will provide you with our WhatsApp number where engineers will help if stuck or doubt.
Warranty
- 5 years on-site parts and labour warranty included.
- Obligatory maintenance visits every 12 months to keep your machine in top condition, £1,500 + travel time.
What is Included in the Package?
Fully assembled machine ready for work from our UK based workshops, all consumables like nozzles, lenses. Laser source and matching chillers. Demineralised water to fill your chiller on installation day. Lifetime software to draw and operate machine. Delivery on hiab, Installation and training. WhatsApp support to help operators with any issues.
Some of the important features of the FLT2 Tube Cutter
