M2 NEST is designed for busy firms that need to process a high volume of boards per day ideal for kitchen and cabinet manufacturers where cutting 60–100 boards daily is standard.

Built as a 12-meter production line, it allows a single operator to run the entire system—eliminating the need for costly extra labour.

If your company produces similar products, cabinetry, or handles repetitive orders, M2 NEST is the perfect solution. You can save 20–30 design files directly on the controller and, at a moment’s notice, cut base cabinets, benches, or dressers that you produce regularly. There’s no need to generate new G-code files each time.

No extra storage space is required in your workshop. Simply order a pallet of boards, load them onto the scissor lift table, and cut only what you need for the day. The table raises in sections, allowing compatibility with any forklift for easy loading.

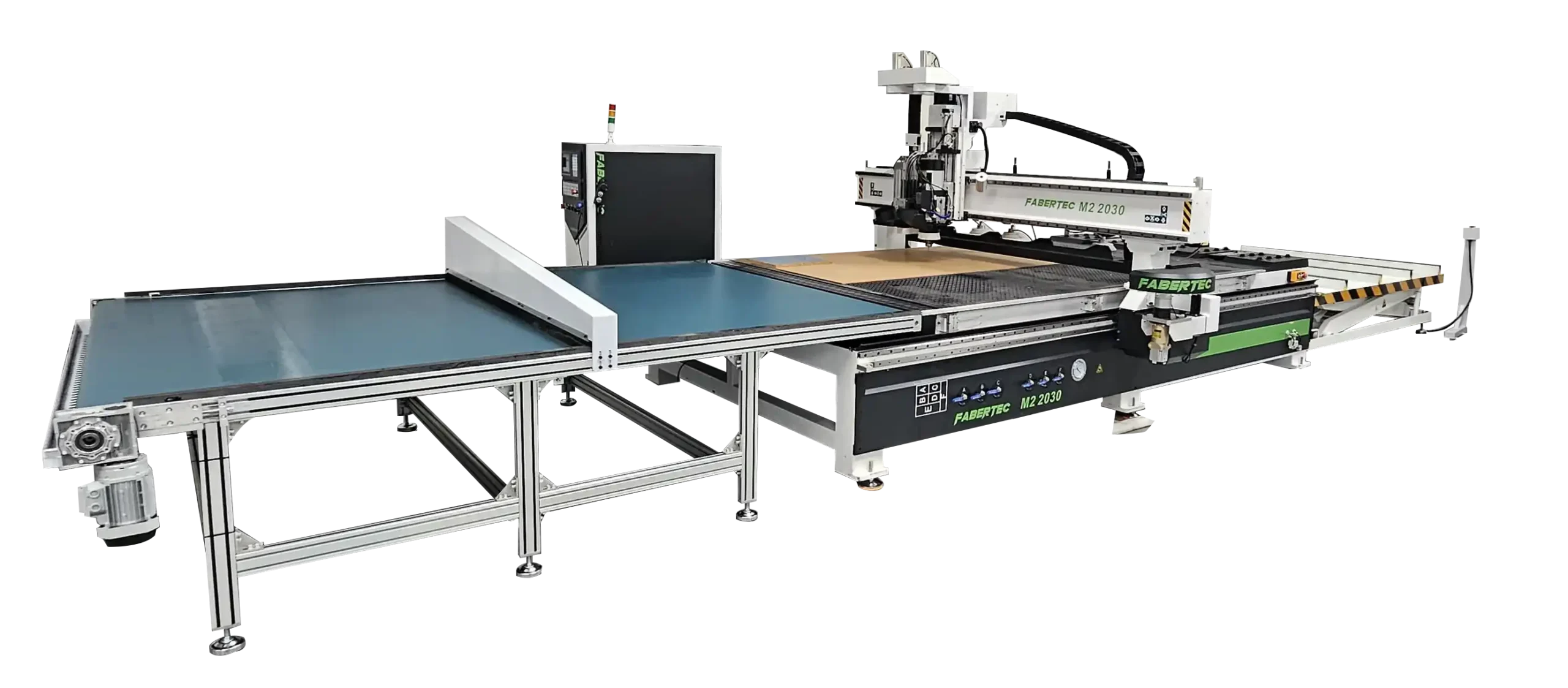

Fabertec M2 2030 Nesting Machine

Technical Specification

  • Working Surface: 2100×3100
  • Max Working Height: Axis Z 300mm
  • Motors: Full 1.3kW Servo Motors with Feedback Loop
  • Runners: HIWIN 30 Heavy Duty (designed for 6ton kinetic load)
  • Speed: 40 meters / minute
  • Software Resolution: 0,01mm
  • Positioning Accuracy: Physical 0,05mm
  • Spindle: 9kW HQD Air Cooled
  • Spindle RPM: Up to 24000rpm
  • Spindle tool diameter: ER32 1-21mm diameter
  • Router Bed: Always as standard vacuum bed with T-slots for clamping
  • Vacuum Pump: Rotary vane 11kW KVE360 Vacuum Pump
  • Software: Vcarve Pro included
  • Weight: 3 ton main bed + 1.5 ton Scissor and Conveyor Table
  • Power Supply Needed: 2 x 3 Phase 32amp also Type D 32amp Breaker needed
  • Tools: 12 Tools available + option of 9 drill head bank

Some of the important features of the M2 2030 Nest

Easily cut 60–80 jumbo boards per day.
Automatic board feeding system. Load up to 28 boards on the scissor lift table and let the machine handle the rest.
Save up to £30,000 per year by eliminating the need for a second operator to move heavy boards or clean components.
After cutting, the CNC automatically pushes finished elements forward for the operator to remove, while simultaneously loading the next board. Fully continuous operation. The conveyor pauses when processed elements are waiting at the front.
A sweeper/hoover is installed under the gantry to clean the sacrificial board—no manual cleaning needed.
Jumbo sheets are automatically pushed against positioning bolts, so the operator doesn’t need to align the board manually.
Built with the same heavy-duty frame as our best-selling M2 2030 CNC model.
Multiple dust shoes and chutes ensure dust is cleared from the table and routed elements. A dust extractor is supplied free of charge.
A powerful rotary vane vacuum pump securely holds jumbo sheets in place on the sacrificial board—no clamps or screws required.
The M2 NEST is built to meet UKCA certification standards and includes integrated light barriers around the working area. These barriers immediately stop the machine if any movement is detected nearby - ensuring operator safety without needing a physical enclosure.
AUTOMATIC BOARDS FEEDING

Load 28 boards on the scissor lift table and watch the machine do everything automatically.

SWEEPER/HOOVER

Installed under the gantry to clean the sacrificial board. No manual cleaning required.

AUTOMATIC SHEET POSITIONING

The jumbo sheet is automatically pushed against positioning bolts. No need for the operator to adjust the board on the table.

WOOD DUST SHOES & CHUTES

Multiple wood dust shoes and chutes to effectively remove dust from the table and routed elements. Free of charge dust extractor supplied.

WOOD DUST SHOES & CHUTES
WOOD DUST SHOES & CHUTES
WOOD DUST SHOES & CHUTES
CONVEYOR BELT TABLE

After cutting, CNC will push all elements for the operator to remove, and at the same time, load the next board for cutting. Fully continuous operation. Conveyor will stop when processed elements are in front of the table waiting for the operator.

Affordable prices to allow you to speed up your workshop processes.

MODEL TABLE DIMENSIONS PRICE
Fabertec M2 2030 Nest - £43,000 +VAT



OPTIONS DETAILS PRICE
Drill Head - £5,000 +VAT
Rotary Vane Vacuum Pump 11kW KVE360  For cutting smaller elements £3,500 +VAT



Lease Purchase

MODEL  TOTAL PRICE MONTHLY    WEEKLY  DAILY
 M2 2030 Nest   £43,000  £968 £223  £32

NOTE: Figures shown for a 5-year lease term; VAT payable upfront.

fabertec m1 1530 atc cnc router machine

Delivery

Due to the machine size can only be delivered by a Hiab lorry, which will incur an extra charge depending on mileage.

  • Up to 30 miles free hiab delivery
  • Up to 50 miles £150
  • Up to 100 miles £485
  • Up to 150 miles £600
  • Up to 200 miles £1000
  • Any distance exceeding 200 miles will have a separate price.

The client needs a forklift on site to unload and position in workshop.

  • M2 2030 4ton with 2200mm long forks.

Warranty

  • 24 Months on-site parts and labour warranty included. Obligatory maintenance is required after the first 12 months to keep the second-year warranty at £600 + travel time (£80/h) + Fuel surcharge (£0.90/m).
  • To extend the 3-year warranty for £2,200 + VAT (M1 1325 Model) only available with first purchase and subject to mandatory service performed 12 and 24 months after the initial purchase of the machine.
  • 12 Months warranty for Vacuum Pump & Dust Extractor

What is Included in the Package?

Fabertec delivers complimentary installation and training services across the UK, conducted by our experienced UK-based engineers. Also, our comprehensive package includes VCarve Pro, a vacuum pump with all necessary collets, chucks, tools and spares. Additionally, we offer a free of charge dust extractor for M1 & M2 Models, ensuring you have everything you need for a seamless experience.
