If you run a joinery business or woodworking workshop and already use a CNC router, adding an edgebander machine is essential to get clean, durable, and professional edges on your panels. At Fabertec, we know how important it is to have a fast and reliable edgebanding process, which is why we’re introducing our most compact and efficient model – the Fabertec E1 Edgebander.

The E1 takes care of the entire edgebanding process, including pre-milling, gluing, pressing, trimming, scraping, and buffing, ensuring a strong and smooth edge on every panel. Designed for small to mid-sized workshops, it delivers consistent results while keeping up with the demands of modern woodworking.

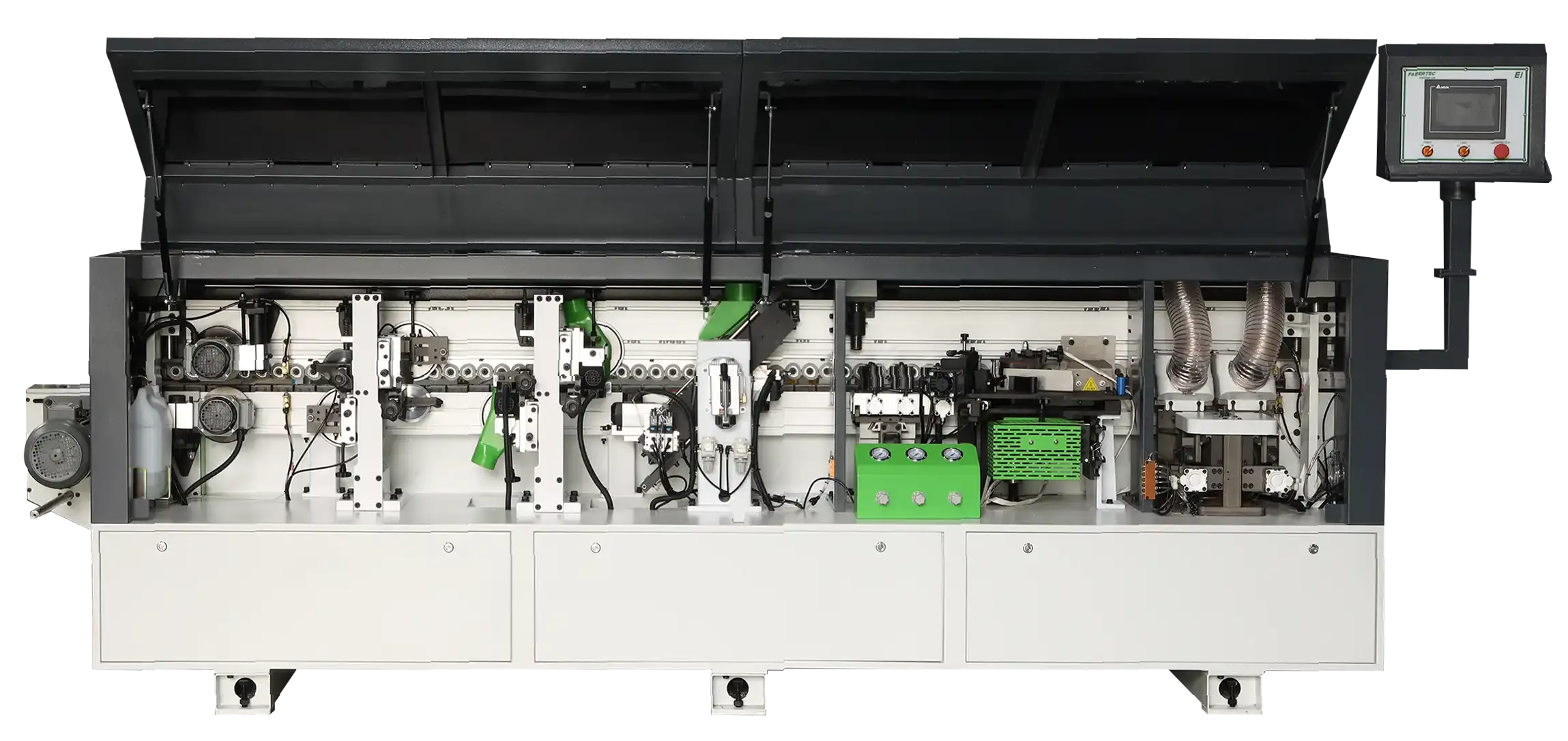

faberrtec edgebander e1

Panel Workflow Stages

Follow the step by step journey of a panel as it moves through each stage, from edge preparation to the final polished finish.

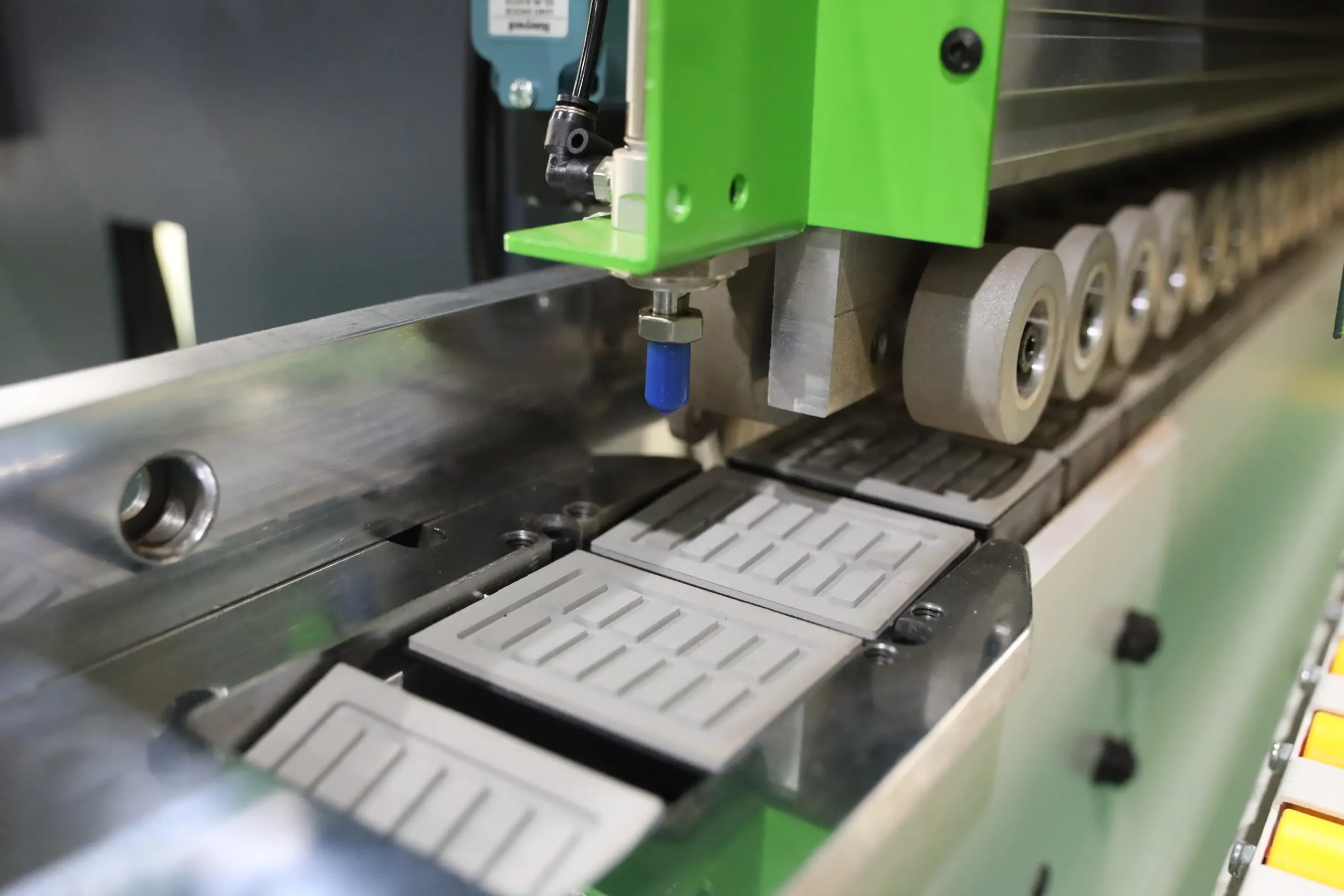

Air Piston

Opens automatically when the machine is ready to accept the next panel.

fabertec edgebander e1 air piston

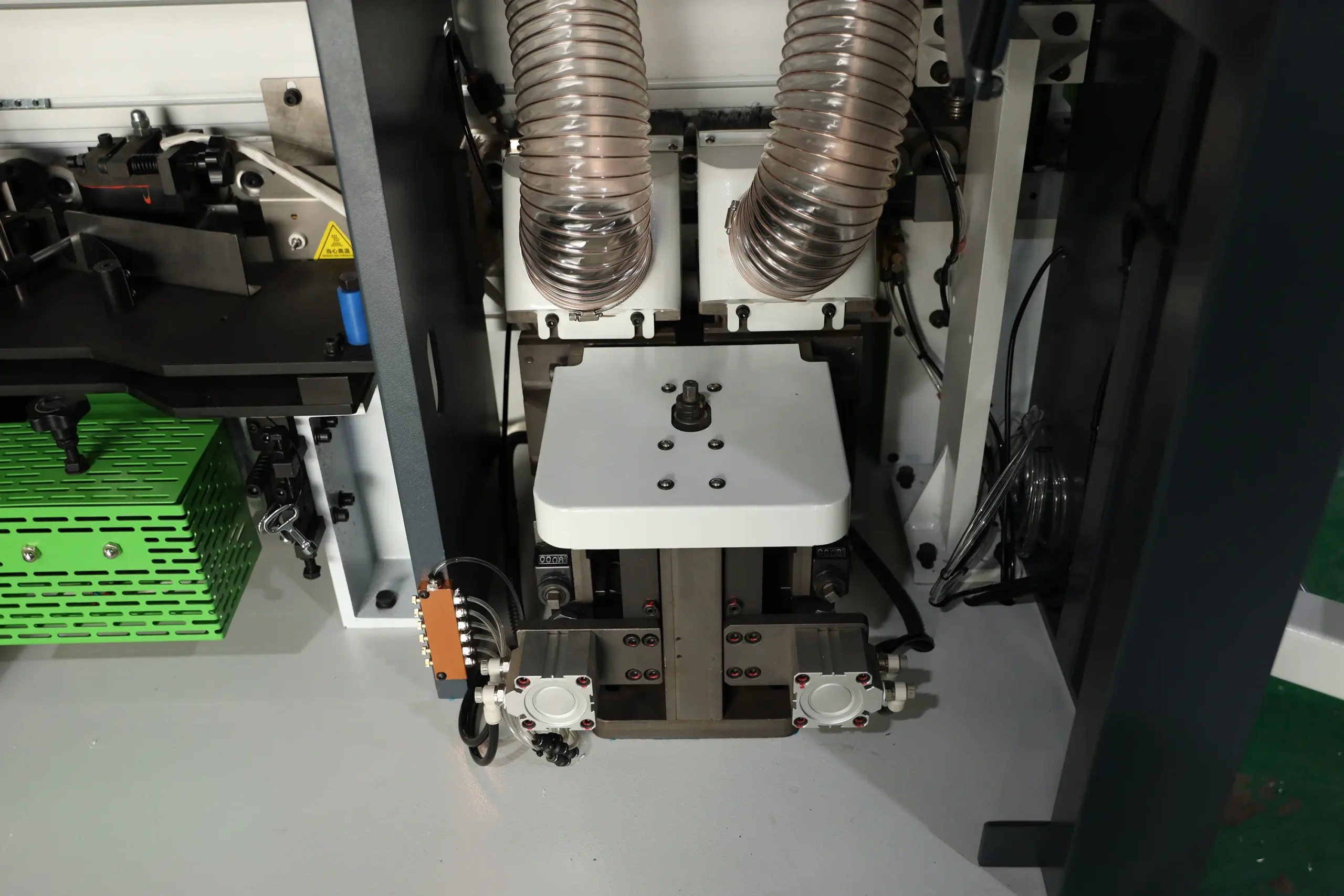

Premilling Unit

Large diamond cutters trim edges and reduce sharpening frequency.

fabertec edgebander e1 air Premilling

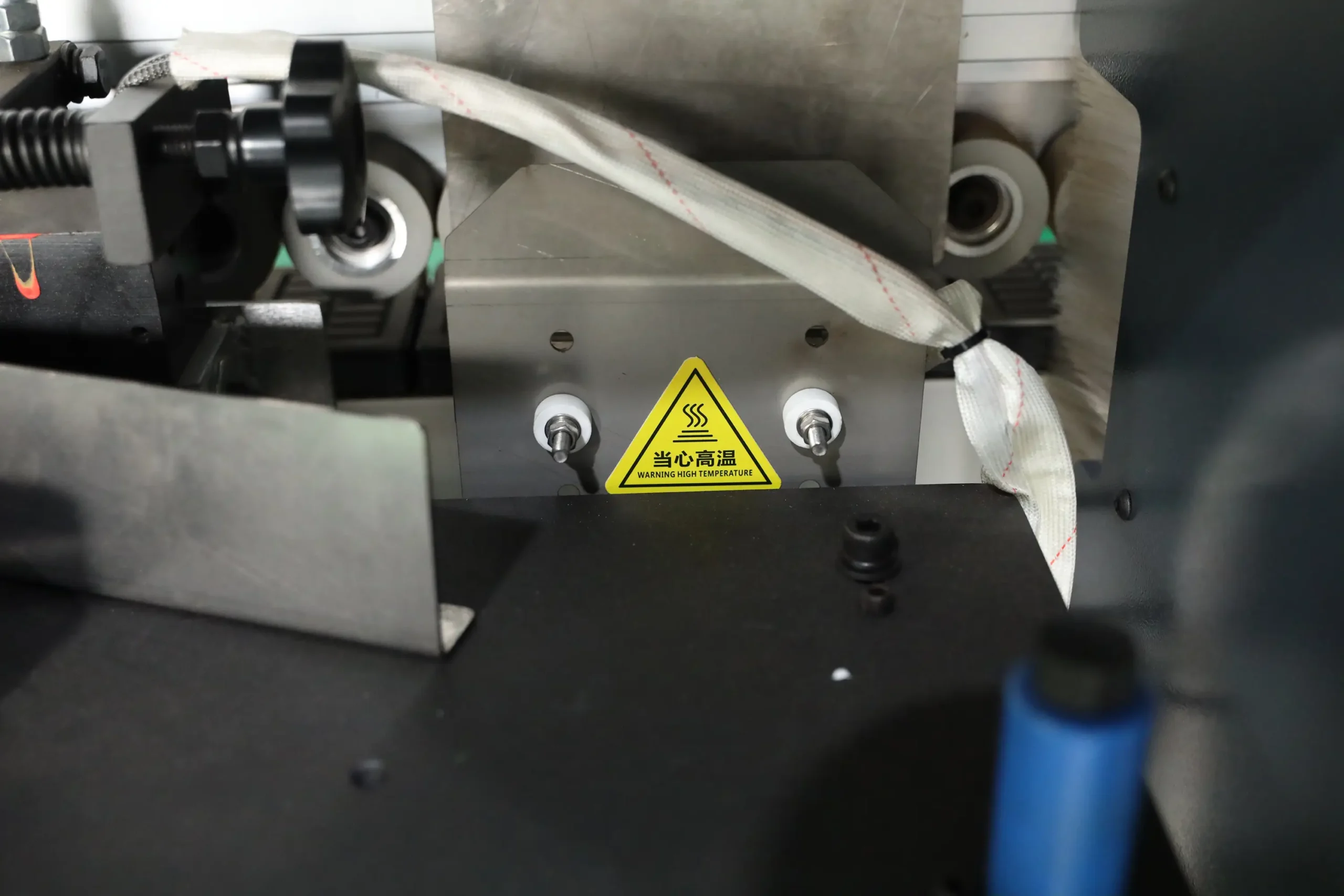

Infrared Preheating

Opens automatically when the machine is ready to accept the next panel.

fabertec edgebander e1 Infrared Preheating

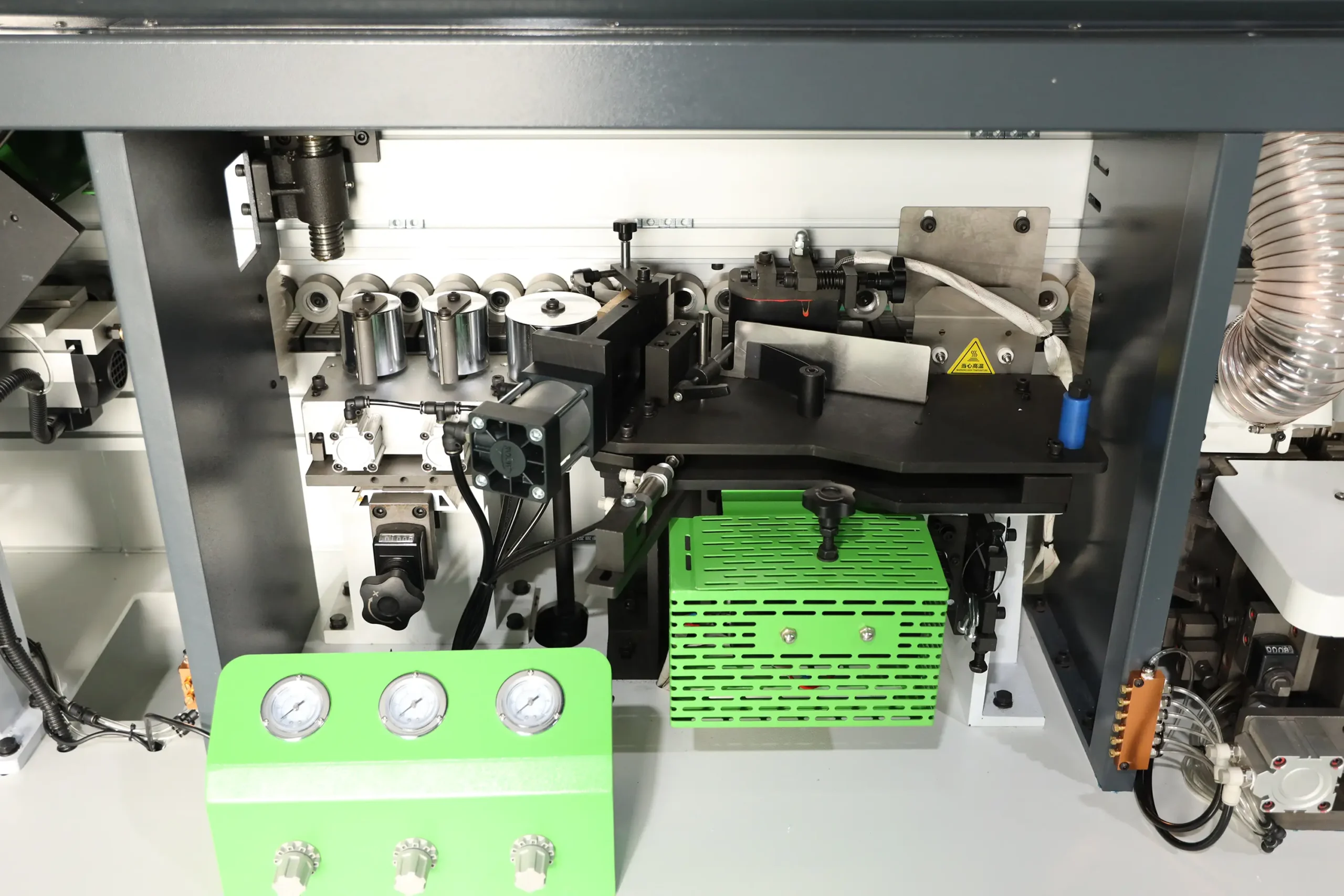

Glue Pot & Guillotine

Applies glue evenly and trims tape precisely for clean edges.

fabertec edgebander e1 Glue Pot with Tape Guillotine

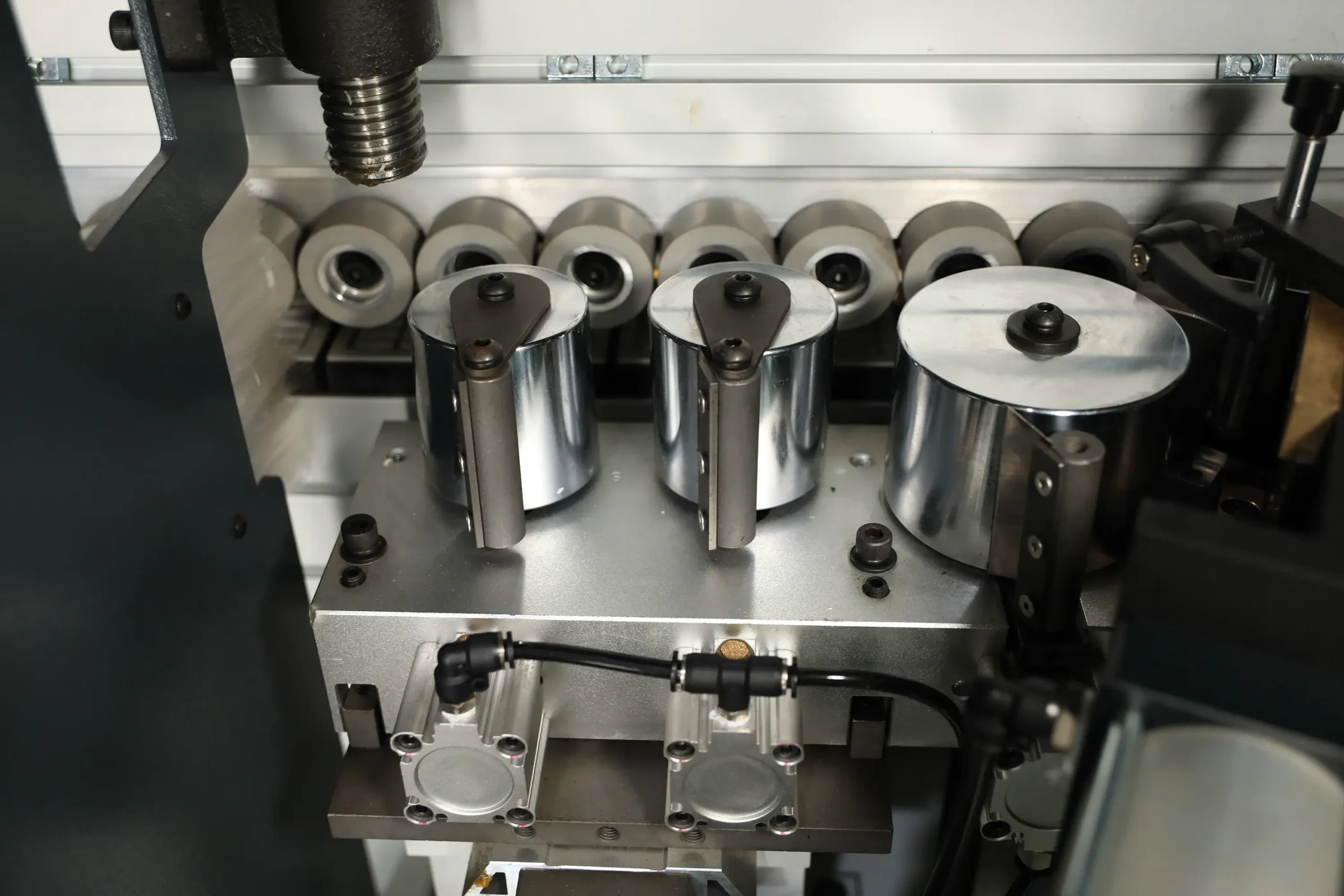

Pressure Adjustable Rollers

Large diamond cutters trim edges and reduce sharpening frequency.

fabertec edgebander e1 Pressure Adjustable Rollers

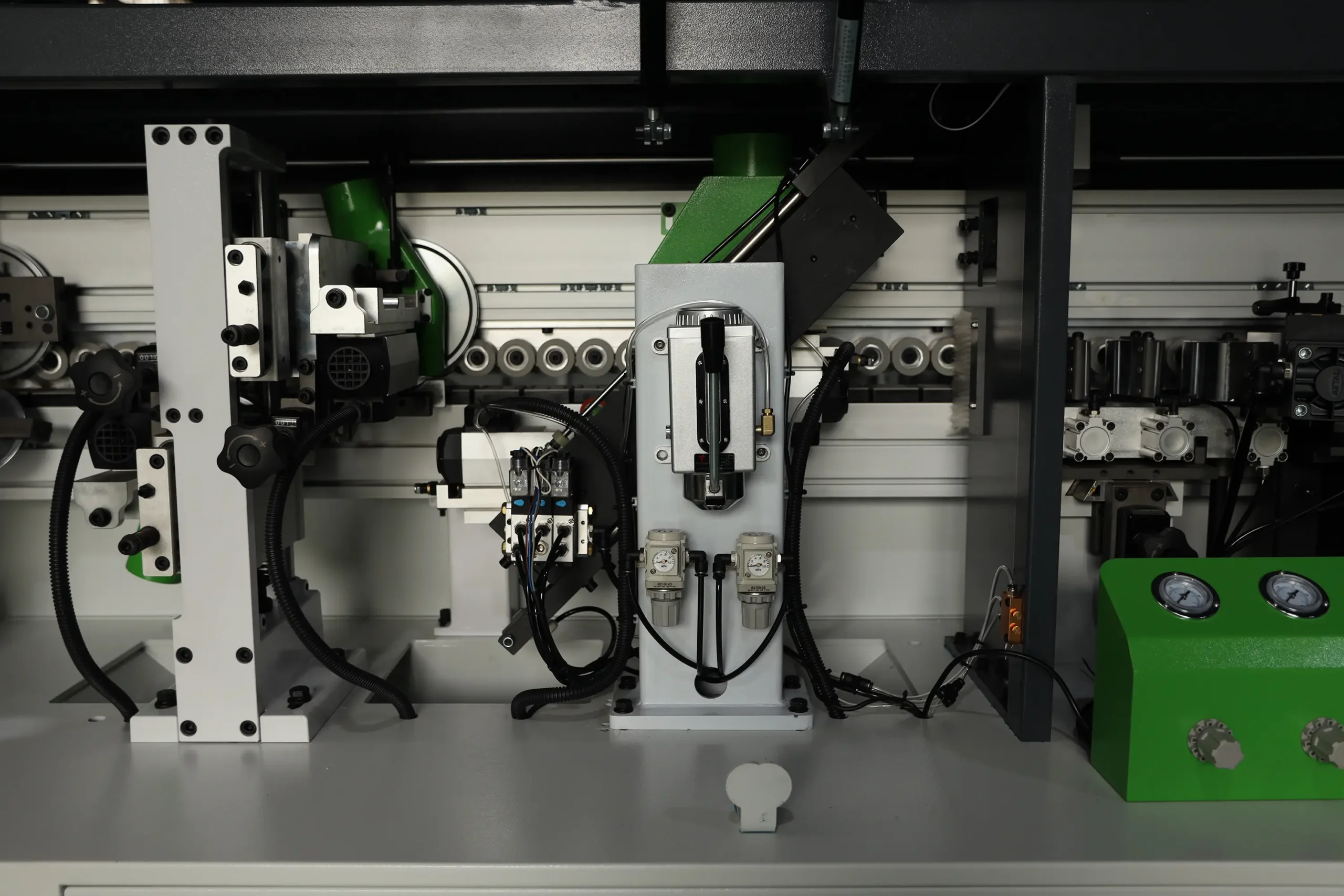

Dual Motor End Trimming

Faster than single motor and allows precise fine adjustments.

Dual Motor End Trimming

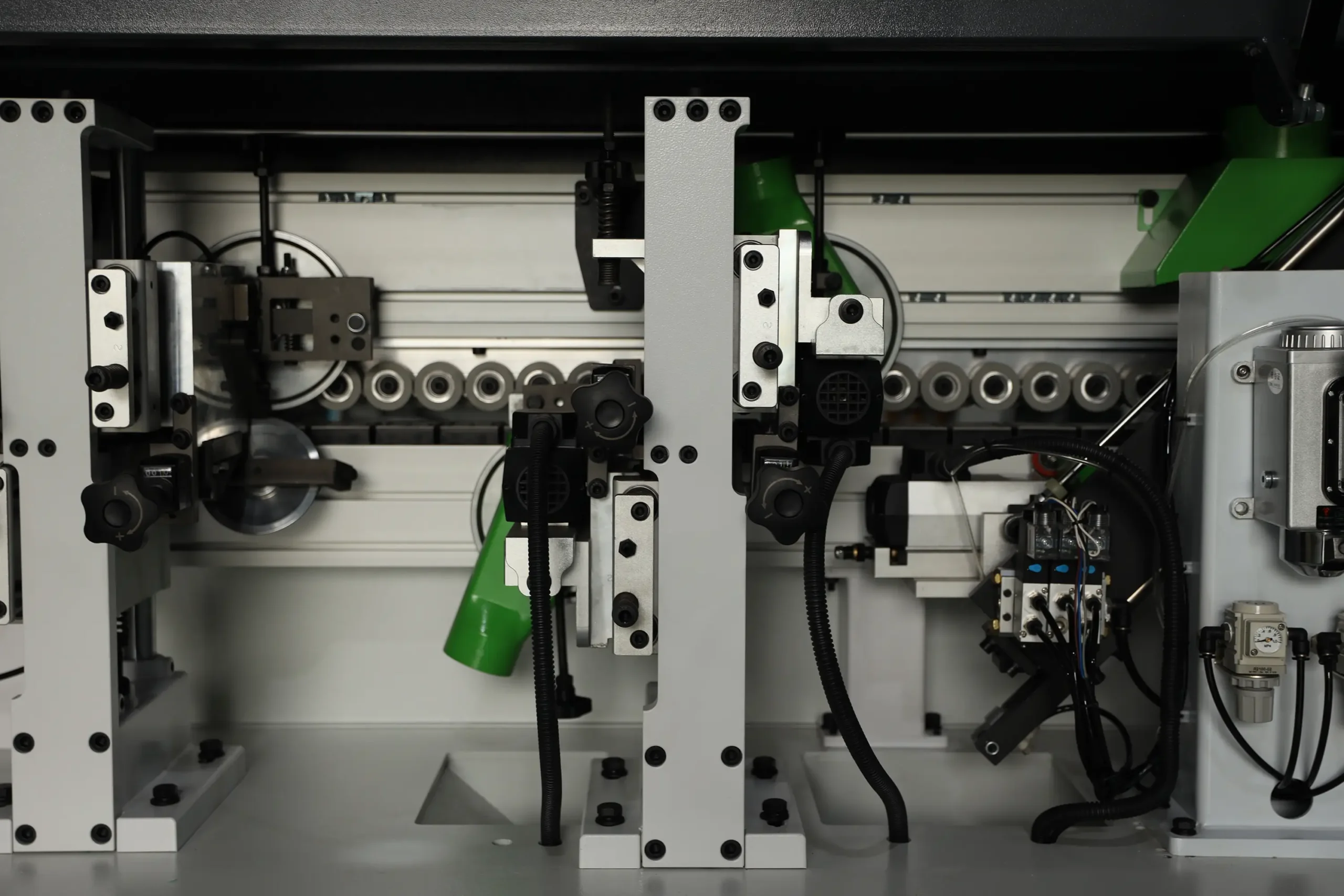

Motorised Scrapers

Adjustable for fine shaving of PVC or veneer edging to the perfect finish.

fabertec edgebander e1 Motorised Scrapers

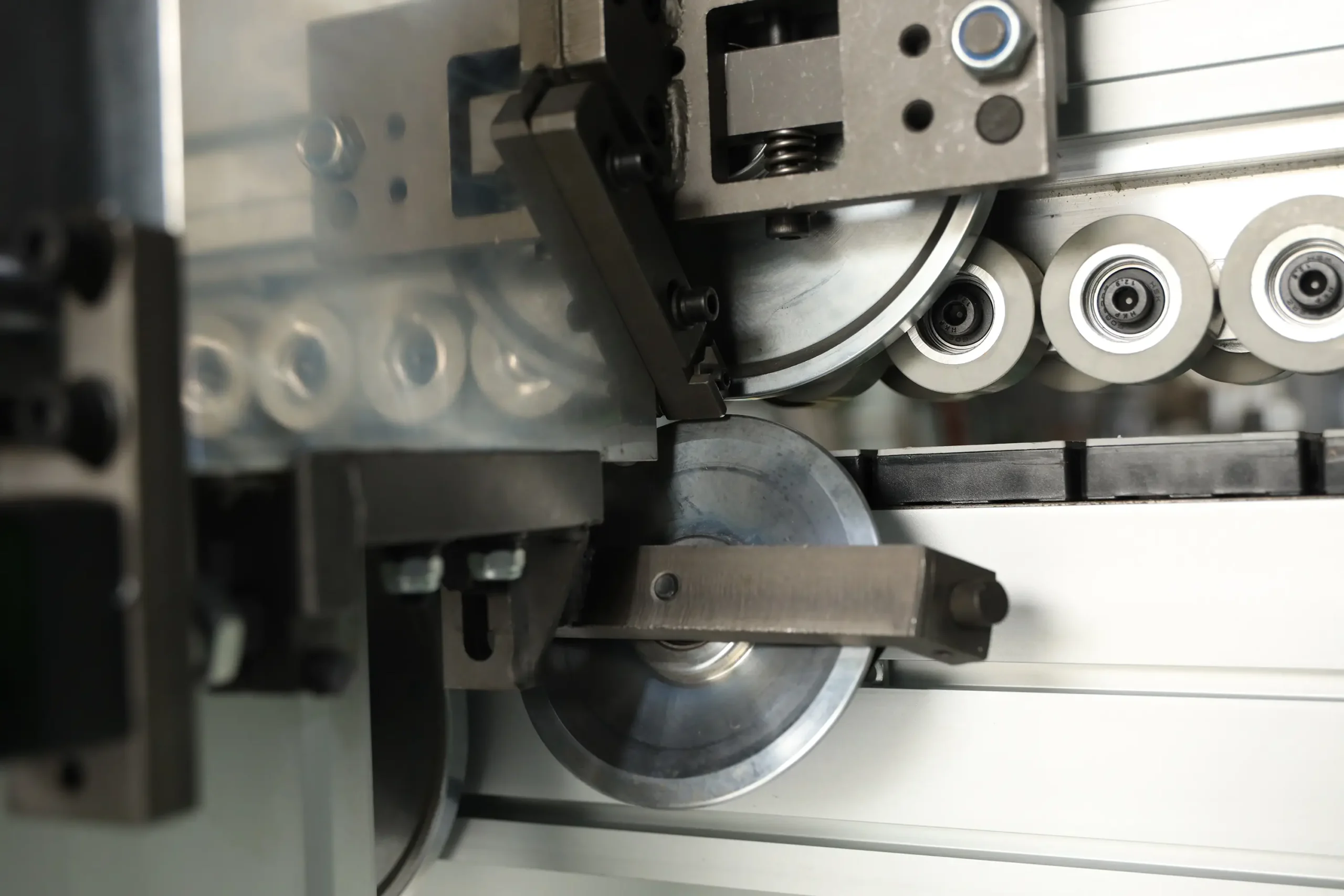

Flat Scrapers

Smoothly shave edges for an even, clean finish on panels.

fabertec edgebander e1 Flat Scrapers

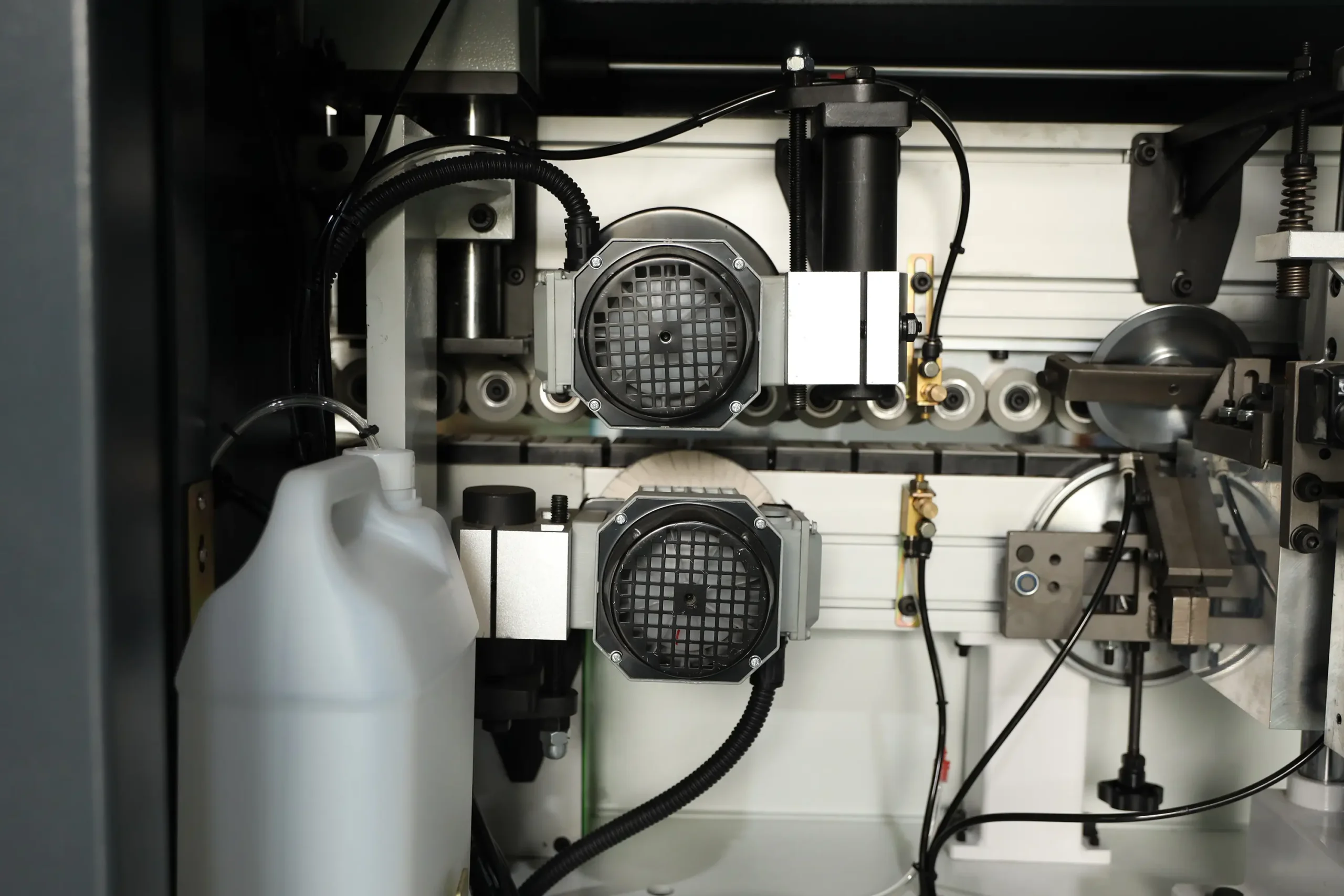

Glue Cleaning & Buffing

Jet liquid removes residue before buffing wheels polish the final edge smoothly.

Glue Cleaning & Buffing

Technical Specification

  • Edge thickness 0.4-3mm
  • Panel thickness 10-60mm
  • Minimum board length ≧150mm
  • Minimum plate width ≧60mm
  • Working pressure 0.6Mpa
  • Feed speed 12-16m/min
  • Total power 12.5kw
  • Weight 1250KG
  • Overall size 4200*800*1750mm
  •

Affordable prices to allow you to speed up your workshop processes.

MODEL PRICE
Edgebander E1 £13,500 + vat

Lease Purchase

MODEL  TOTAL PRICE MONTHLY    WEEKLY  DAILY
  E1   £13,500  £304 £70  £10

NOTE: Figures shown for a 5-year lease term; VAT payable upfront.

Delivery / Installation / Warranty

The delivery charge for the Edgebander machine is calculated based on the distance from our warehouse to the client’s location. For an exact delivery quote, please contact our office.

If the client requires installation, Fabertec provides on-site setup and training by our experienced engineers. This service is offered at an additional cost, which will be quoted separately based on the location and scope of work.

Every Fabertec Edgebander comes with a 12-month warranty, ensuring dependable performance and support after purchase.

📩office@fabertec.co.uk ☎️+44 (0) 208 00 33 299

Fabertec Edgebander Videos

Some of the important features of the Edgebander E1

This edgebander is built on a thick steel frame, adding up to 500kg of extra weight compared to lighter machines. That’s not just for show, it prevents warping, vibration, and alignment issues over time. When 13 to 20 motors are running together, a solid structure keeps every module stable and precisely in place. It’s the kind of build quality you’ll appreciate years down the line.
Every Fabertec edgebander comes with premilling built in, not as an upgrade, but as a standard. It’s a simple step that makes a big difference. Premilling smooths out any chip-outs and prepares a perfect edge before the tape even touches the board. If your CNC cut is final size, just take 1mm off, apply 1mm PVC, plusand you're done. Clean, accurate, and exactly how it should be.
Even in our budget-friendly E1 model, we’ve included automatic panel thickness adjustment. There’s no manual cranking or wasted time, just press a button and the machine adjusts itself. It’s a small detail that makes a big difference for the operator, and frankly, we think it should be standard on every edgebander.
The machine is equipped with four independent motors driving diamond-tipped blades, two for flat scrapers and two for corner rounding. This setup ensures a flawless edge finish, whether you're doing straight panels or rounded corners. Each pass is clean, precise, and reduces the need for manual touch-ups.
The machine is equipped with four independent motors driving diamond-tipped blades, two for flat scrapers and two for corner rounding. This setup ensures a flawless edge finish, whether you're doing straight panels or rounded corners. Each pass is clean, precise, and reduces the need for manual touch-ups.
Flat scraper blades are positioned on the top and bottom edges to remove any leftover glue or PVC residue after trimming. This helps achieve a clean, finished look without smears or build-up, especially important for high-end panels where every detail matters.
A specially formulated cleaning liquid applied as a standard step before polishing. It effectively removes surface contaminants to ensure the buffing heads can achieve a flawless, high-quality finish on the panel.
Used to remove all remaining PVC residues, glue, and dirt, leaving the surface thoroughly clean and ready for the next stage.
Start processing your panels with your edgebander in just 20 minutes. Easier and more intuitive than ever before.
Always handy, Fabertec maintenance videos guide you through solving common issues with our edgebanders. Keep your machine clean and contamination-free, and it will reward you with long-lasting, reliable performance.
As always, FABERTEC invests heavily in stocking all essential spare parts and consumables, ensuring you won’t face lengthy downtime. Most items are available with Next Day Delivery.
