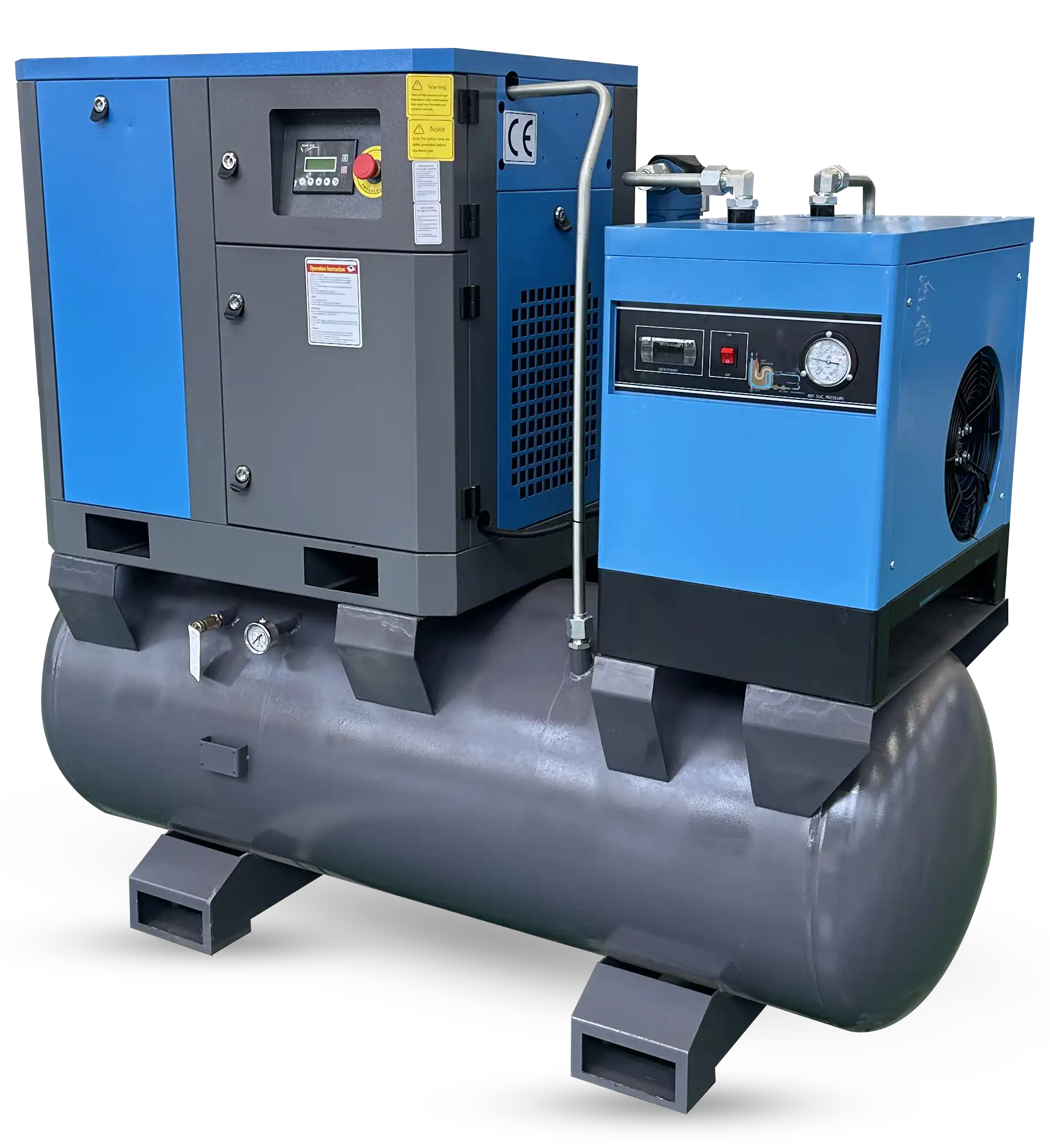

Dry, Stable Air for Woodshops & Furniture Production
Engineered for joinery, cabinetmakers, and woodworking factories, the WoodPro Series provides clean, dry, and stable air at up to 10 bar, perfect for CNC routers and edgebanders. With 2-stage filtration and a built-in refrigerated dryer, it protects your tools, improves finish quality, and supports continuous production.
Designed to handle dust-heavy environments, it reduces moisture build-up that can damage pneumatic systems. The compact, low-noise design makes it ideal for indoor workshop setups. Whether you’re operating a single CNC or running multiple workstations, WoodPro scales with your needs.
Technical Specification
| MODEL SPECIFICATIONS | RH-10HP | RH-15HP | RH-20HP | RH-30HP |
|---|---|---|---|---|
| Motor Power | 7.5kW | 11kW | 15kW | 22kW |
| CFM / Capacity / Pressure (m³/min / MPa) |
38.9CFM – 1.1 / 0.8 | 60CFM – 1.7 / 0.8 | 79.5CFM – 2.25 / 0.8 | 127.2CFM – 3.6 / 0.8 |
| 31.8CFM – 0.9 / 1.0 | 53CFM – 1.5 / 1.0 | 67CFM – 1.9 / 1.0 | 113CFM – 3.2 / 1.0 | |
| – | – | 38.9CFM – 1.1 / 1.6 | 70.7CFM – 2.0 / 1.6 | |
| Tank (L) | 320L | 400L | 400L | 400L |
| Length (mm) | 1700mm | 1800mm | 1800mm | 1910mm |
| Width (mm) | 700mm | 800mm | 800mm | 870mm |
| Height (mm) | 1470mm | 1630mm | 1630mm | 1800mm |
| Net Weight (kg) | 420kg | 550kg | 550kg | 650kg |
Technical Highlights
| MODEL | POWER | PRESSURE | FILTRATION | TYPICAL USE CASE |
|---|---|---|---|---|
| WoodPro 5 | 5kW | 10 bar (adj. 8) | 2-stage | Light workshop tools |
| WoodPro 7.5 | 7.5kW | 10 bar (adj. 8) | 2-stage | Medium woodworking shop – Just M1/M2 or Edgebander |
| WoodPro 11 | 11kW | 10 bar (adj. 8) | 2-stage | FABERTEC M2 CNC + E2 Edgebander |
| WoodPro 15 | 15kW | 10 bar (adj. 8) | 2-stage | Adds a third workstation |
| WoodPro 20 | 20kW | 10 bar (adj. 8) | 2-stage | Large-scale wood production |
All WoodPro models include:
Refrigerated air dryer, Anti-corrosion internal piping, Low-noise enclosure, Oil Free, 2 Filters providing clean and dry air
Key Features
- Adjustable pressure up to 10 bar (can reduce to 8 bar)
- 2-stage filtration + integrated dehumidifier
- Compact, quiet, and energy-efficient
- Run your Fabertec M2 Router and E2 Edgebander with the 11 kW model
- Scale up to 3 workstations with 15 kW and 20 kW options
- Available in: 5 kW, 7.5 kW, 11 kW, 15 kW, 20 kW
Whether you're a busy joinery shop or a large-scale furniture manufacturer, the WoodPro Air Compressor is built to keep your air clean, your machines running smoothly, and your output consistent. Invest in reliable compressed air tailored for woodworking, because every perfect cut starts with the right pressure.
